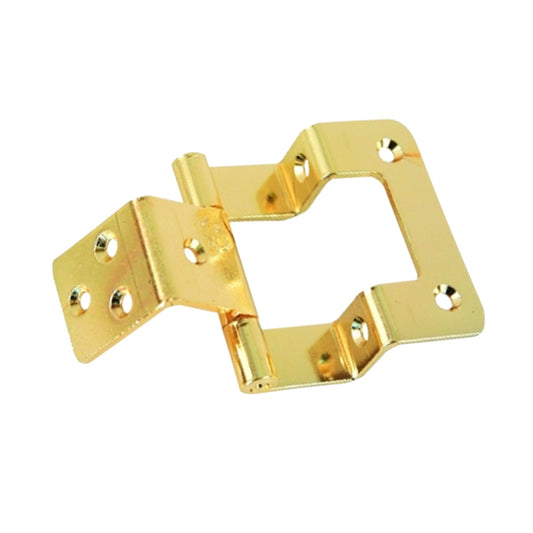

Steel Double Cranked Hinges

A double cranked hinge is a specialist cabinet hinge where both leaves are bent (cranked) at 90 degrees in the same direction, creating an offset geometry that allows an inset door to be hung with the hinge mounted on the face of the carcass rather than in the traditional inset mortice position. At the DIY Hardware Store, our double cranked hinges cover the steel versions used in kitchen unit, workshop cabinet, and general utility cabinetry applications where inset door hanging on a face-mounted hinge is the required installation method.

The double crank allows the hinge to bridge the step between the cabinet frame face and the door face when the door is set inset within the opening - without this crank, a standard flat hinge would require the door to be surface-mounted or the hinge to be let into the carcass edge. The double cranked version simplifies installation by allowing the hinge to be surface-screwed to both the door and the carcass without any rebating or recessing.

Available in steel at the DIY Hardware Store in standard pair packs for kitchen unit and utility cabinet inset door applications.

  • Both leaves cranked to bridge inset door step
  • Allows inset door hanging without rebating or recessing
  • Surface-screwed to door and carcass face
  • Used in kitchen units and utility cabinet installations
  • Sold in pairs for complete door hanging
  • Steel construction for durable cabinet applications
